Description

By using the same driveline, battery and safety technology as all other Yutong electric buses, the ABe14 is designed to meet the five key challenges of driving range, zero emission, battery life and safety with an affordable whole life cost. It also allows commonality with landside buses.

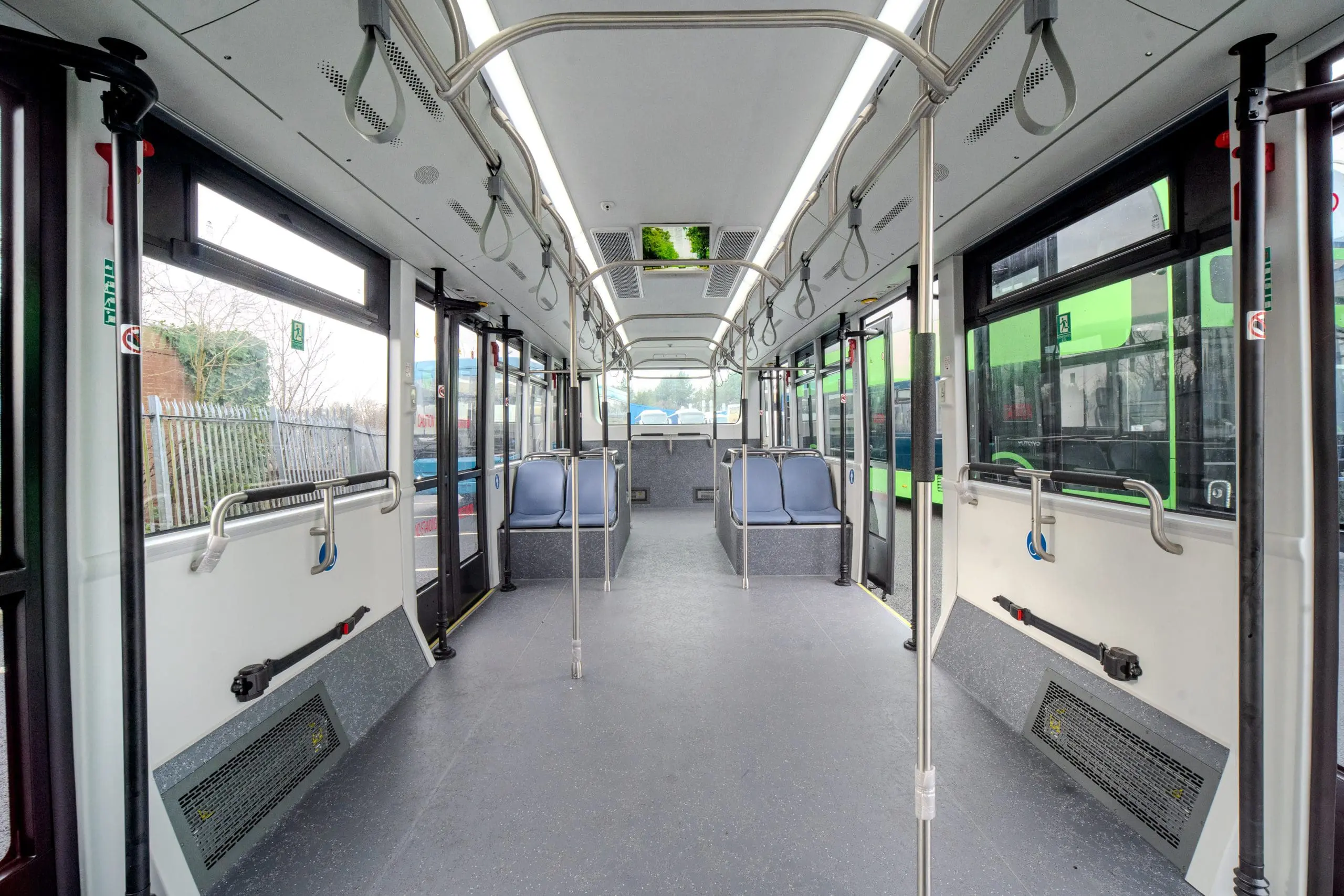

Designed to carry 110 passengers, the six pairs of doors ensure fast and convenient passenger embarking and disembarking. Separate air-conditioning for the driver’s cab and passenger area is fitted as standard.

Dimensions (mm) L*W*H

Dimensions (mm) L*W*H

13,800* 3,000* 3,280

13,800* 3,000* 3,280

Interior Height (mm)

Interior Height (mm)

2,450

2,450

Unladen Weight (kg)

Unladen Weight (kg)

14,050

14,050

Max Speed (km/h)

Max Speed (km/h)

50

50

Passenger Capacity

110

Electric Motor

Single rear mounted electric drive motor

Axles

ZF steering and drive axle. ZF third axle with Bosch steering

Suspension

Full ECAS air suspension with twin front air bags and four rear air bags.

Battery

229kWh LFP battery, Liquid Cooling. Option 281kWh

Battery Safety

Full YESS System

Charging

Single charge point upto 150KWh charging capacity. CCS2 Charging

Tyres & Wheels

Front 315/80R22.5 tyres & rear 295/80R22.5 tyres. Aluminium wheel rims

Air Conditioning

Yutong independent roof-mounted electric A/C. Independent control in driver area. Cooling capacity of 56,000 Kcal/h

Door

6 dual-leaf pneumatic out-swing service doors in the front, middle and rear on both left and right sides. Pneumatic out-swing driver & co-driver door.

Accessibility

Manually operated wheel chair ramp at front doors.

Seats

8 seats over wheel archs. Driver’s heated suspension seat. Option of twin or single passenger seats in cab.

Audio/Video

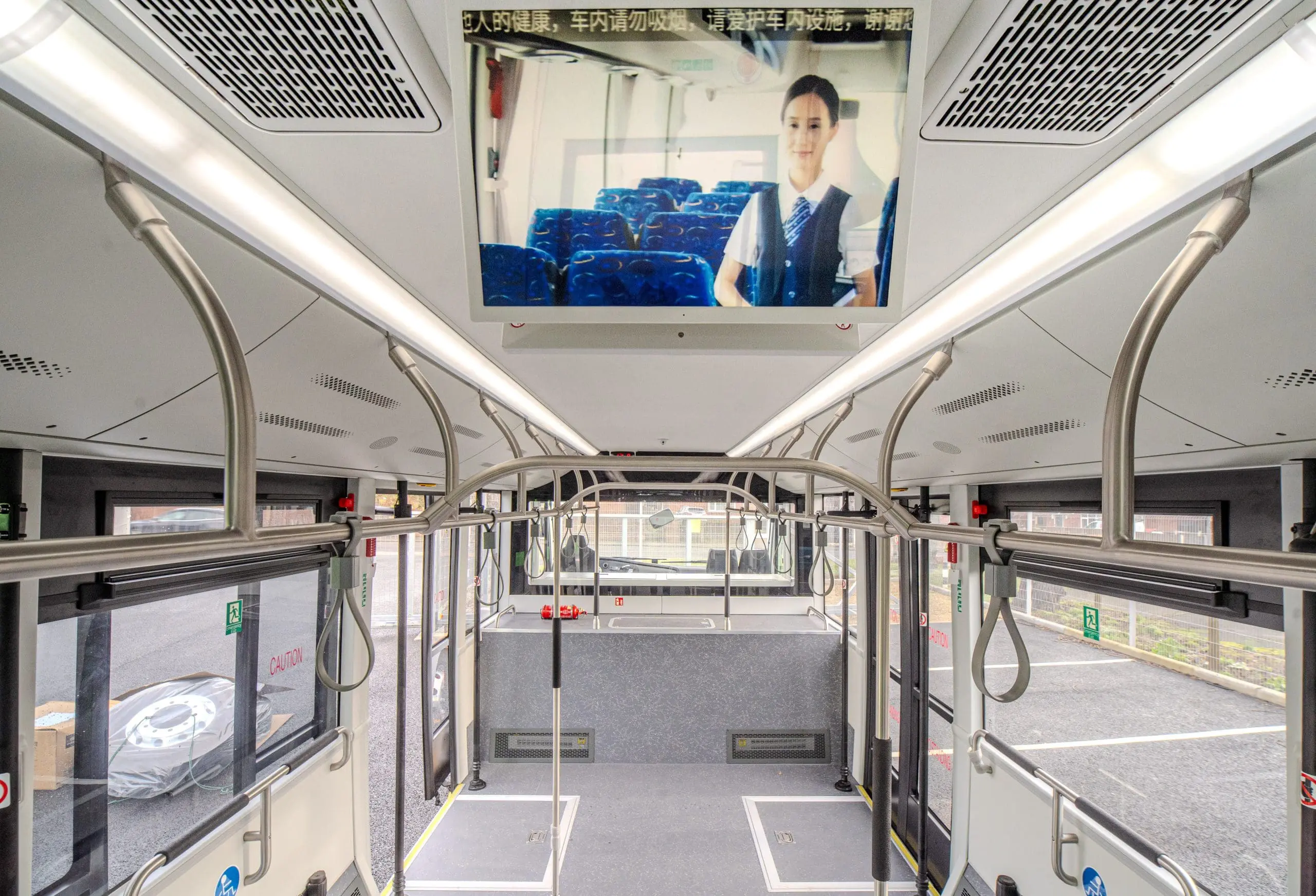

Video player with two screens mounted centrally in the passenger compartment. Four USB points in driver area, PA system from driver and front passenger seat to passenger compartment.

CCTV

Reverse camera and internal CCTV system complete with dash mounted colour screen. 360 degrees all round camera system

Lights

All LED lighting inside and outside. Front and rear mounted amber beacons

Warranty

4 Years whole vehicle warranty, 5 Years electric driveline warranty, 8 Years battery warranty

Specification

Length 13.8m
Width 3m
Height 3.28m
Passenger Capacity 110 Standing
Electric Motor Single rear mounted electric drive motor
Axles ZF steering and drive axle. ZF third axle with Bosch steering
Suspension Full ECAS air suspension with twin front air bags and four rear air bags.
Tyres & Wheel Front 315/80R22.5 tyres & rear 295/80R22.5 tyres. Aluminium wheel rims
Battery 229kWh LFP battery, Liquid Cooling. Option 281kWh
Battery Safety Full YESS System
Charging Single charge point upto 150KWh charging capacity. CCS2 Charging
Air Conditioning Yutong independent roof-mounted electric A/C. Independent control in driver area. Cooling capacity of 56,000 Kcal/h
Doors 6 dual-leaf pneumatic out-swing service doors in the front, middle and rear on both left and right sides. Pneumatic out-swing driver & co-driver door.
Accessibility Manually operated wheel chair ramp at front doors.
Seats 8 seats over wheel archs. Driver’s heated suspension seat. Option of twin or single passenger seats in cab.
CCTV Reverse camera and internal CCTV system complete with dash mounted colour screen. 360 degrees all round camera system
Lights All LED lighting inside and outside. Front and rear mounted amber beacons
Audio/Video Video player with two screens mounted centrally in the passenger compartment. Four USB points in driver area, PA system from driver and front passenger seat to passenger compartment.
Warranty 4 Years whole vehicle warranty, 5 Years electric driveline warranty, 8 Years battery warranty
Air Conditioning Yutong independent roof-mounted electric A/C. Independent control in driver area. Cooling capacity of 56,000 Kcal/h
Doors 6 dual-leaf pneumatic out-swing service doors in the front, middle and rear on both left and right sides. Pneumatic out-swing driver & co-driver door.
Accessibility Manually operated wheel chair ramp at front doors.
Seats 8 seats over wheel archs. Driver’s heated suspension seat. Option of twin or single passenger seats in cab.
CCTV Reverse camera and internal CCTV system complete with dash mounted colour screen. 360 degrees all round camera system
Lights All LED lighting inside and outside. Front and rear mounted amber beacons
Audio/Video Video player with two screens mounted centrally in the passenger compartment. Four USB points in driver area, PA system from driver and front passenger seat to passenger compartment.
Warranty 4 Years whole vehicle warranty, 5 Years electric driveline warranty, 8 Years battery warranty
