Description

The E10 is a zero tailpipe emission electric single deck bus which has tried, tested, and proven technology with over 40 billion kms of experience. It delivers a smooth, quiet, and comfortable ride. Full air conditioning. Industry-leading safety systems with the safest battery chemistry. designed and built with no compromise on fit or finish, and excellent access to all componentry resulting in low repair and maintenance costs.

Dimensions (mm) L*W*H

Dimensions (mm) L*W*H

10,900* 2,550* 3,285

10,900* 2,550* 3,285

Unladen Weight (kg)

Unladen Weight (kg)

13,200

13,200

Max Allowed Weight (kg)

Max Allowed Weight (kg)

18,300

18,300

Max Speed (km/h)

Max Speed (km/h)

80

80

Seats

27+4 tip-ups+2 Muki

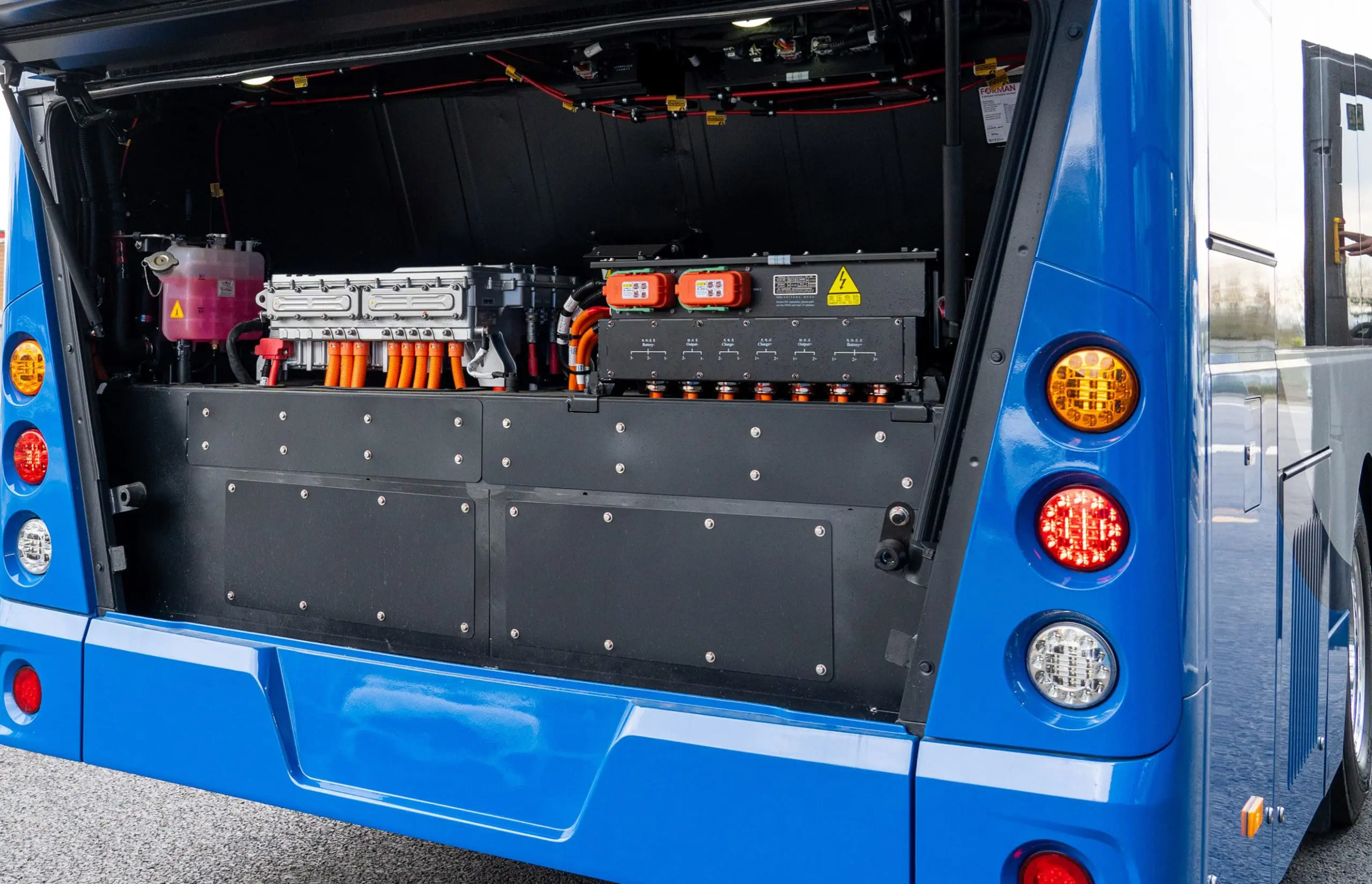

Electric Motor

Single PMSM Motor, Rated Power 215kW

Axles

Front ZF RL82EC, Rear ZF AV133, Disc brakes

Tyres & Wheels

Michelin 275/70R22.5, Yutong Bright Aluminium Wheel

Battery

Battery

422.87kWh LFP battery, liquid cooling. Option 350kWh

422.87kWh LFP battery, liquid cooling. Option 350kWh

Battery Safety

Battery Safety

Full YESS System

Full YESS System

Charging

Charging

One charging point with 150KW, CCS2 charging

One charging point with 150KW, CCS2 charging

Passenger Seats

Yutong highback seat with USB

Doors

Front double leaf

Air Conditioning

Cooling capacity 32000Kcal/h, heating capacity 30,000Kcal/h)

Drivers Seat

Yutong drivers seat

Roof Cowl

Included

Bespoke Options

Passengers seats, driver seats, flooring, seating material, destination systems, passenger information systems, CCTV, charging up to 300kW per hour

Specification

Length 10.9m
Width 2.55m
Height 3.285m
Passenger Capacity 70
Unladen Weight(kg) 13,200
Max Allowed Weight(kg) 18,300
Max Speed (km/h) 80
Seats 27+4 Tip-ups+2 Muki
Electric Motor Single PMSM Motor, Rated Power 215kW
Axles Front ZF RL82EC, Rear ZF AV133, Disc brakes
Tyres & Wheels Michelin 275/70R22.5, Yutong Bright Aluminum Wheel
Battery 422.87kWh LFP battery, Liquid Cooling,. Option 350kWh
Battery Safety Full YESS System
Charging One charging point with 150KW, CCS2 Charging
Air Conditioning Cooling capacity 26000Kcal/h,Heating capacity 24000Kcal/h)
Doors Front double leaf
Roof Cowl Included
Floor Non-slip, heavy duty vinyl flooring
Drivers Seat Yutong drivers seat
Passenger Seats Yutong highback seat with USB
Bespoke Options Passengers seats, driver seats, flooring, seating material, destination systems, passenger information systems, CCTV, Charging up to 300kW per hour
Battery 422.87kWh LFP battery, Liquid Cooling,. Option 350kWh
Battery Safety Full YESS System
Charging One charging point with 150KW, CCS2 Charging
Air Conditioning Cooling capacity 26000Kcal/h,Heating capacity 24000Kcal/h)
Doors Front double leaf
Roof Cowl Included
Floor Non-slip, heavy duty vinyl flooring
Drivers Seat Yutong drivers seat
Passenger Seats Yutong highback seat with USB
Bespoke Options Passengers seats, driver seats, flooring, seating material, destination systems, passenger information systems, CCTV, Charging up to 300kW per hour
