Description

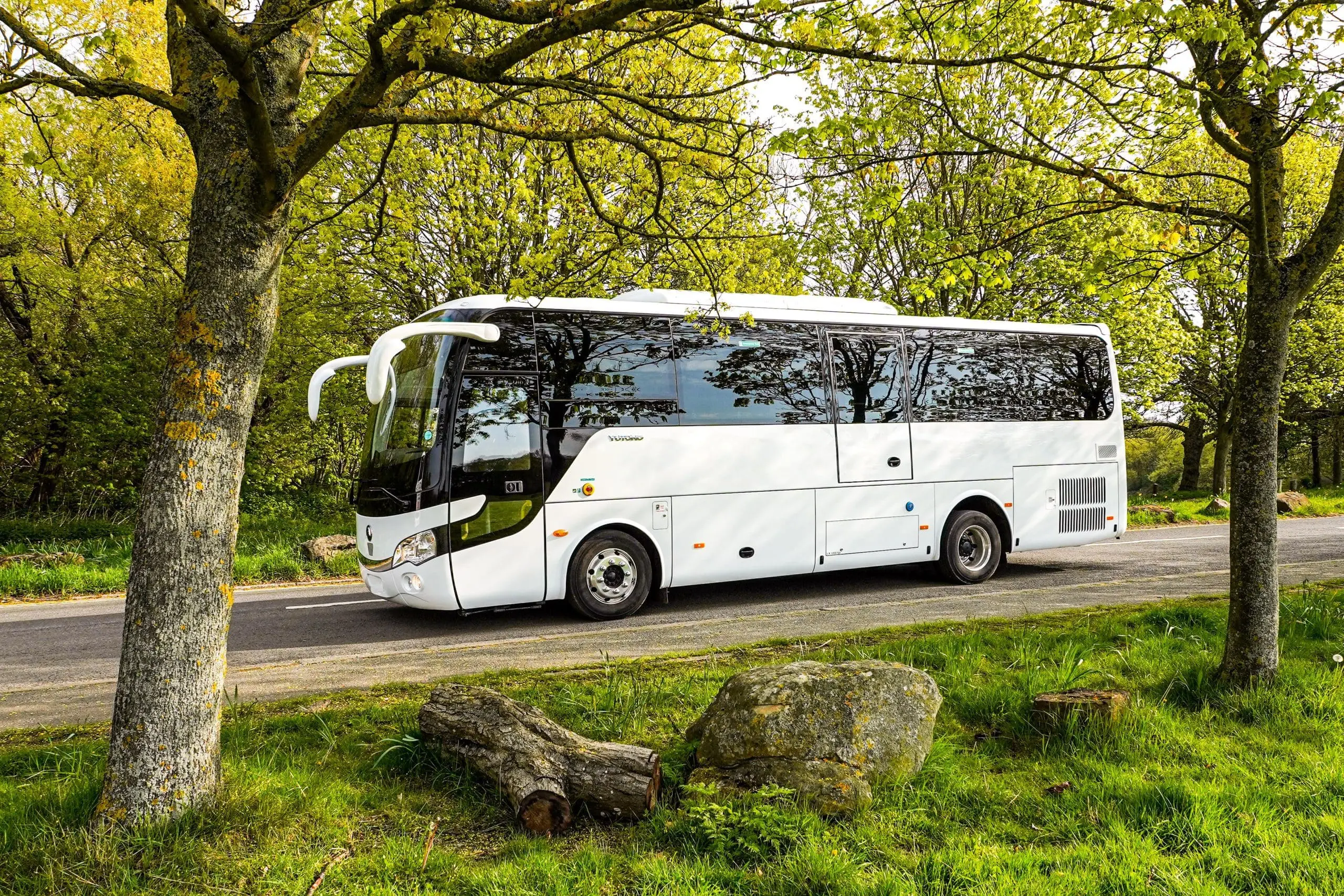

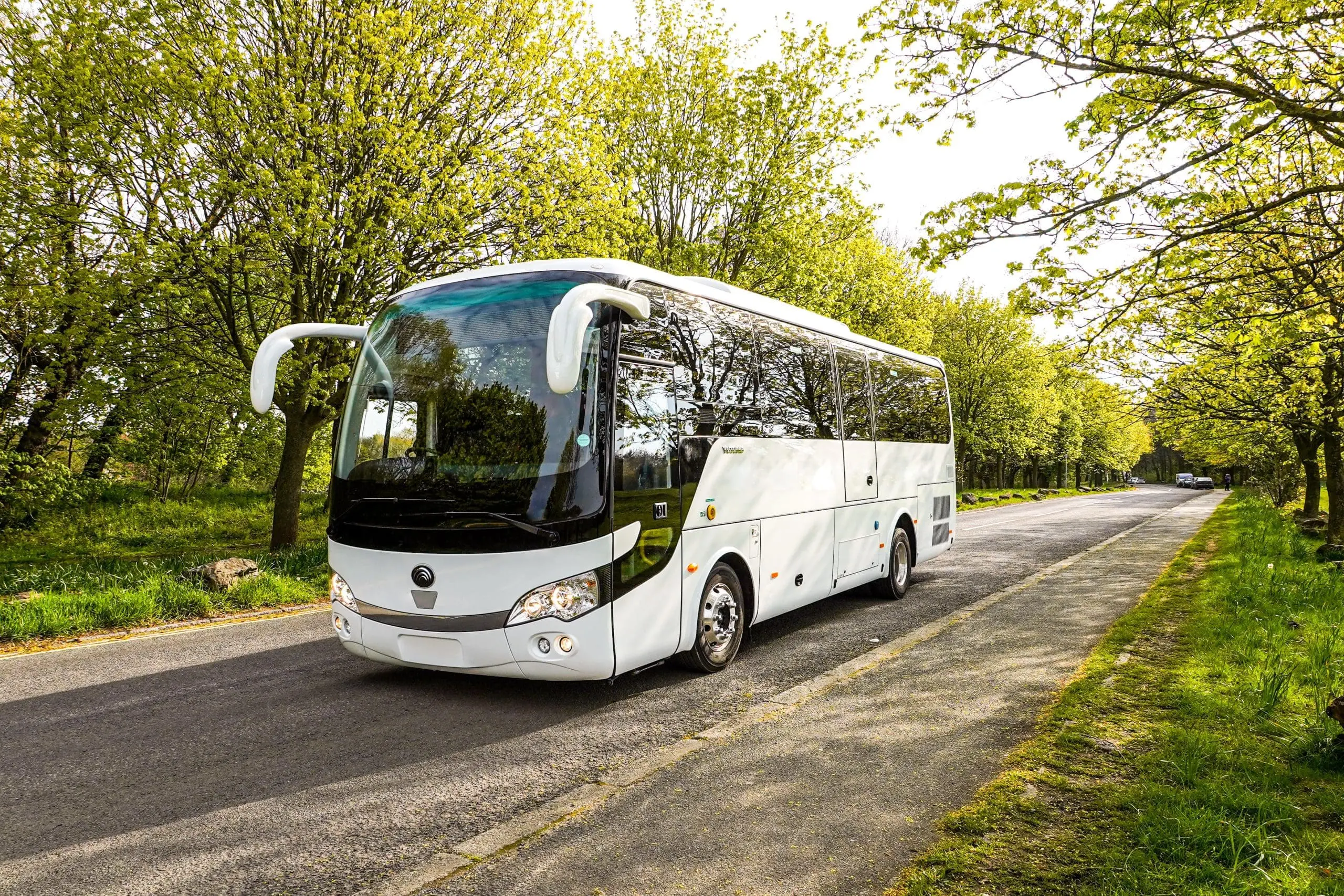

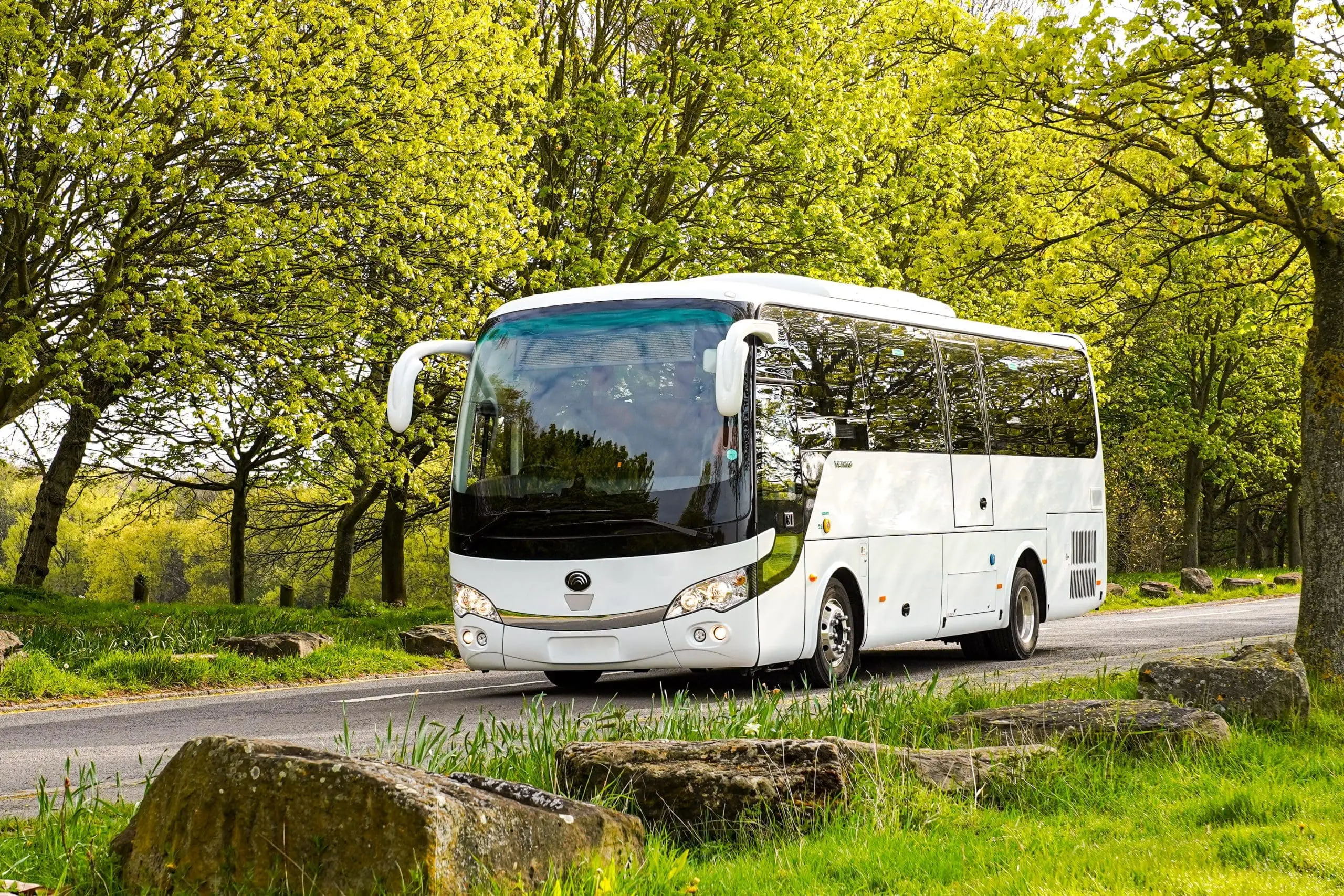

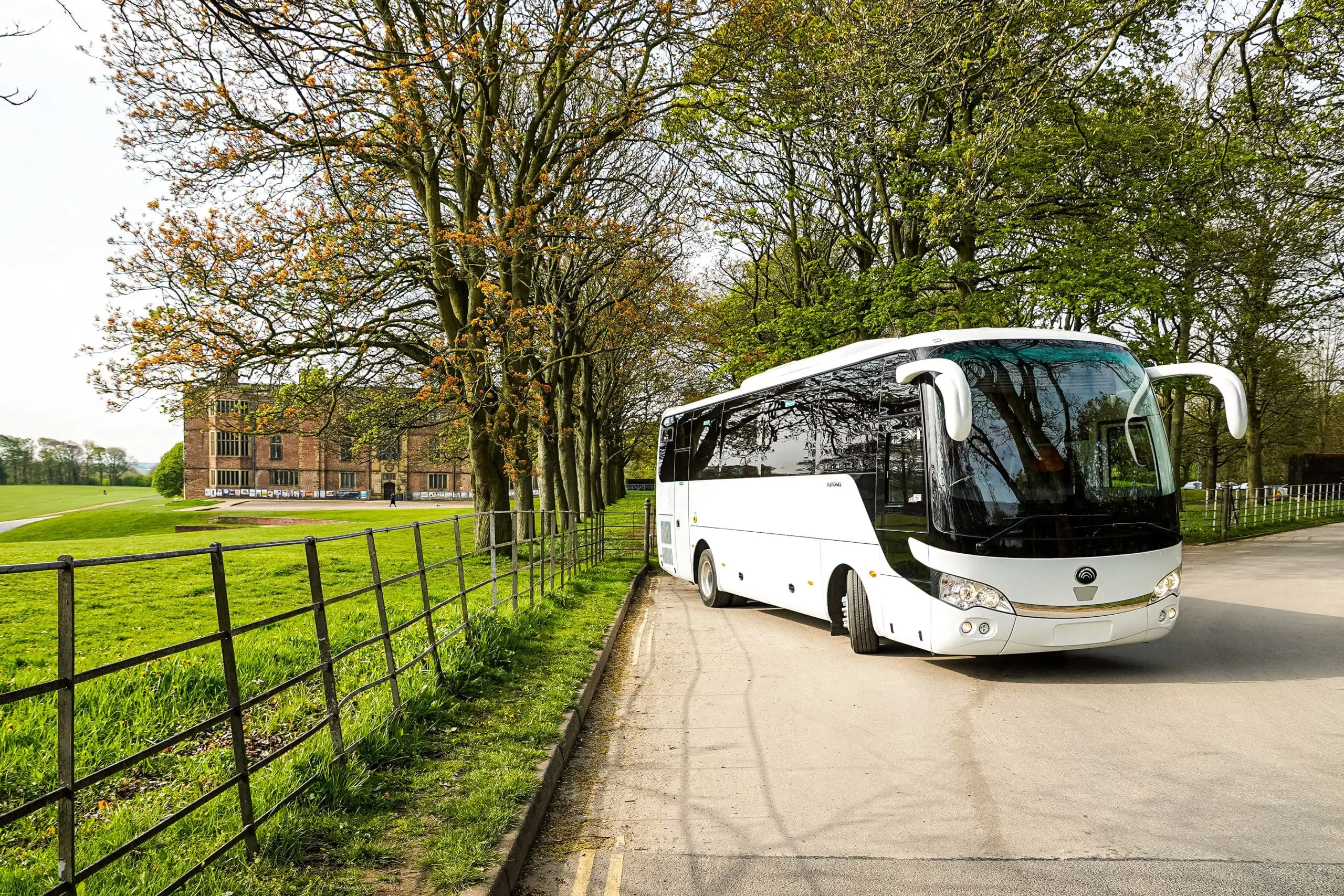

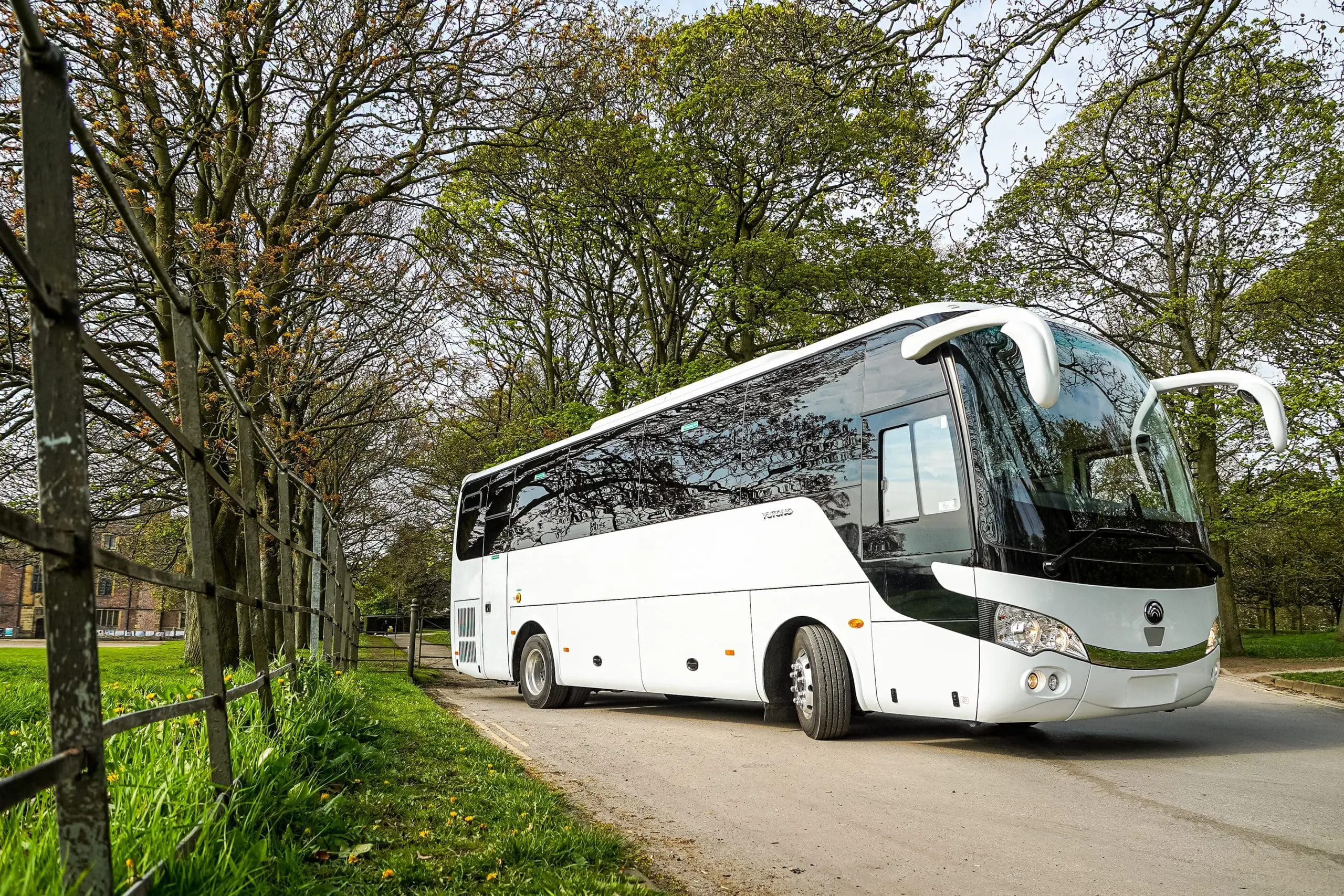

Since its introduction in 2014, the Yutong TC9 has been the market-leading midi coach in the UK for over a decade. It is a no compromise midi coach with full-width body, rear-mounted engine, and ride comfort comparable to a full-size coach. Excellent on road performance comes from the 320bhp Cummins engine and ZF fully automatic gearbox.

With hundreds of TC9s on the road, this coach has developed a strong residual value with all ages of used TC9s proving highly saleable. Choose from 37 seats without a toilet or 34 seats with a toilet.

Dimensions (mm) L*W*H

Dimensions (mm) L*W*H

9,350* 2,550* 3,440

9,350* 2,550* 3,440

Max Allowed Weight (kg)

Max Allowed Weight (kg)

13,800

13,800

Max Speed (km/h)

Max Speed (km/h)

100

100

Luggage Capacity (m3)

Luggage Capacity (m3)

5

5

Engine

Cummins ISB 6.7 320BHP Euro 6e

Gearbox

ZF 6AP1200B AT Fully automatic gearbox

Axles

Yutong steering and drive axle. ZF 8095 power steering.

Suspension

Full air suspension with ECAS System.

Tyres & Wheels

Michelin 265/70 R19.5 tyres. Polished aluminium wheels

Fuel Tank

260 litres

Heating & Air Conditioning

Roof-mounted cooling and heating 24,000 Kcal air conditioning system. Webasto independent heating for passenger area, separate heater for driver.

Doors

N/S front and O/S centre pneumatic out swinging doors

Drivers Seat

Leather & fabric trimmed driver’s multi-function heated seat

Passenger Seats

Reclining and side spacing passenger seats with three point seatbelts and footrests in half leather trim. USC-A and USB-C charge point at every seat

Seating Colour Options

Upholstery seat choices

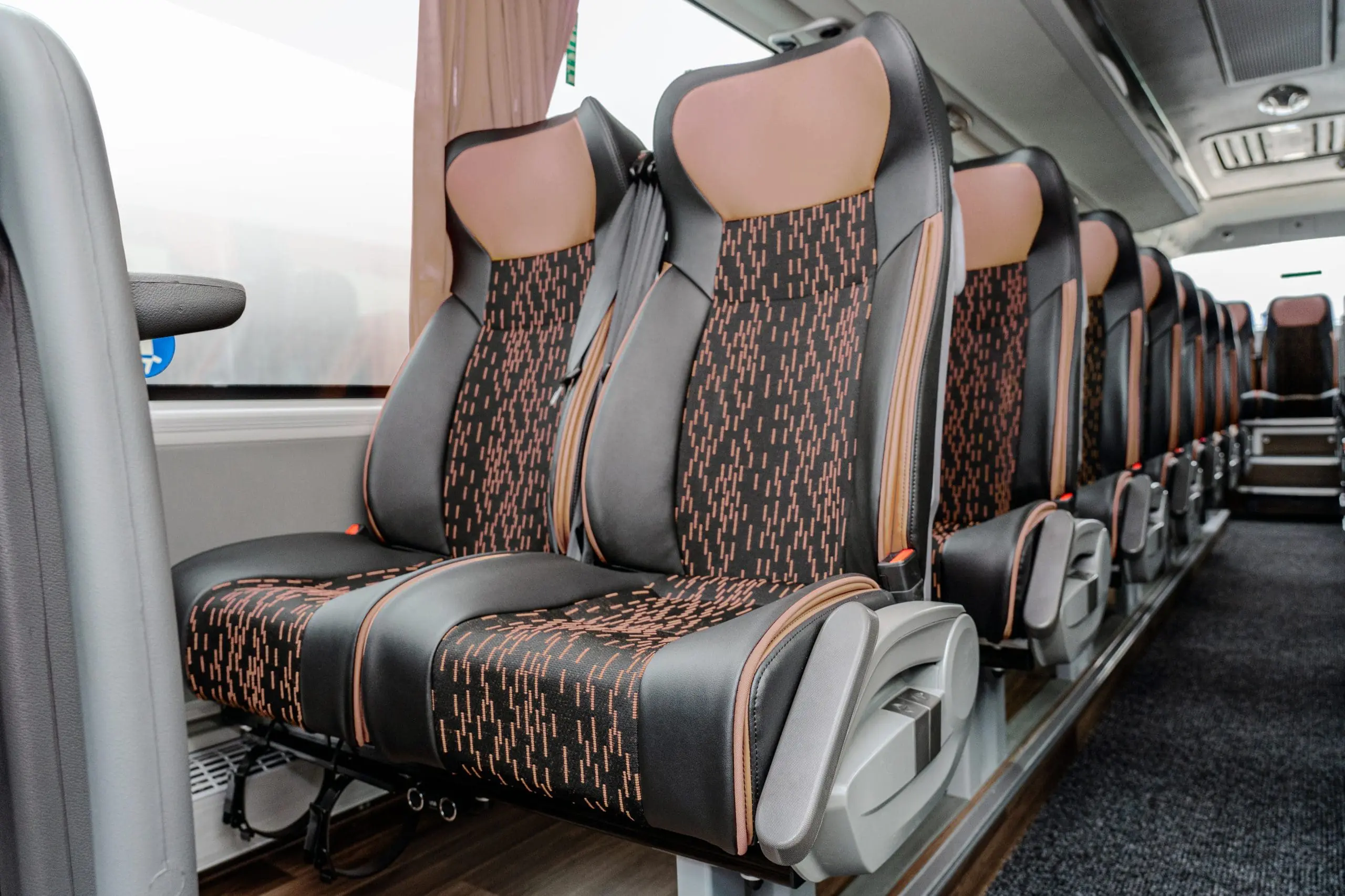

Brown / Black

Half leather brown/black

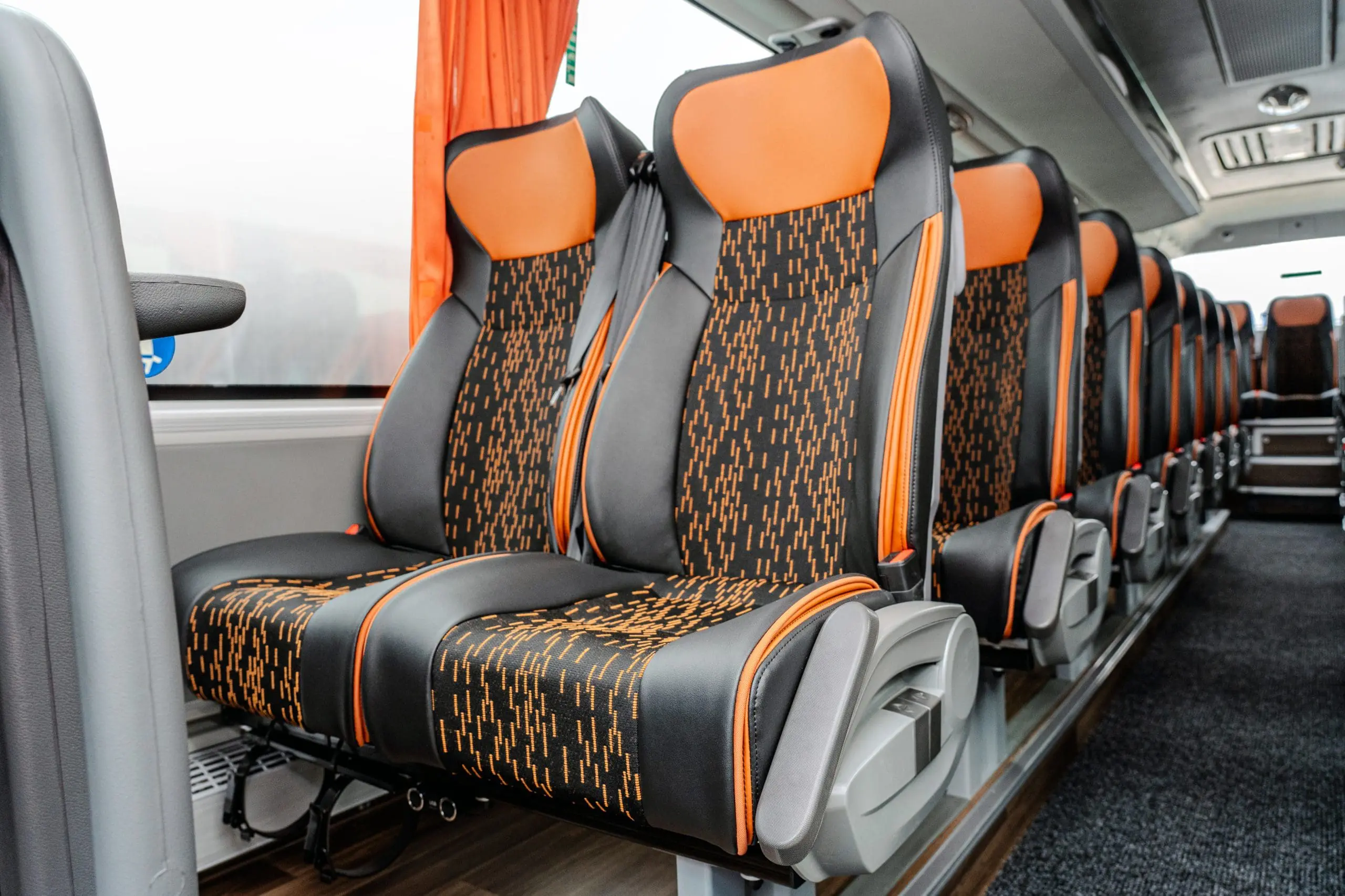

Burnt Orange / Black

Half leather burnt orange/black

Red / Black

Half leather red/black

Audio/Video

Bosch multi-media and video player with front 17" motorized monitor. P.A. System with driver and courier microphones

Misc.

Integral reverse camera with colour screen. Fridge in dash. Reverse alarm. Driver locker

Accessibility

Lockable side door for wheelchair access with floor mountings and electric chair lift

Lights

LED interior lighting

Specification

Length (mm) 9,350
Seating 37 + 1
PSVAR Compliant Yes
Dimensions L*W*H 9,350*2,550*3440
Max Allowed Weight(kg) 13,800
Max Speed (km/h) 100
Luggage Capacity 5cu.m
Engine Cummins ISB 6.7 320BHP Euro 6e
Gearbox ZF 6AP1200B AT Fully automatic gearbox
Axles Yutong steering and drive axle. ZF 8095 power steering.
Suspension Full air suspension with ECAS System.
Tyres & Wheels Michelin 265/70 R19.5 tyres. Polished aluminium wheels
Fuel Tank 260 Litres
Drivers Seat Leather & Fabric trimmed driver’s multi-function heated seat
Passenger Seats Reclining and side spacing passenger seats with three point seatbelts and footrests in half leather trim. USC-A and USB-C charge point at every seat
Heating & Air Conditioning Roof-mounted cooling and heating 24,000 Kcal air conditioning system. Webasto independent heating for passenger area, separate heater for driver.
Doors N/S front and O/S centre pneumatic out swinging doors
Accessibility Lockable side door for wheelchair access with floor mountings and electric chair lift
Audio/Video Bosch multi-media and video player with front 19' motorized monitor. P.A. System with driver and courier microphones
Lights LED interior lighting
Misc. Integral reverse camera with colour screen. Fridge in dash. Reverse alarm. Driver locker
Fuel Tank 260 Litres
Drivers Seat Leather & Fabric trimmed driver’s multi-function heated seat
Passenger Seats Reclining and side spacing passenger seats with three point seatbelts and footrests in half leather trim. USC-A and USB-C charge point at every seat
Heating & Air Conditioning Roof-mounted cooling and heating 24,000 Kcal air conditioning system. Webasto independent heating for passenger area, separate heater for driver.
Doors N/S front and O/S centre pneumatic out swinging doors
Accessibility Lockable side door for wheelchair access with floor mountings and electric chair lift
Audio/Video Bosch multi-media and video player with front 19' motorized monitor. P.A. System with driver and courier microphones
Lights LED interior lighting
Misc. Integral reverse camera with colour screen. Fridge in dash. Reverse alarm. Driver locker
