Description

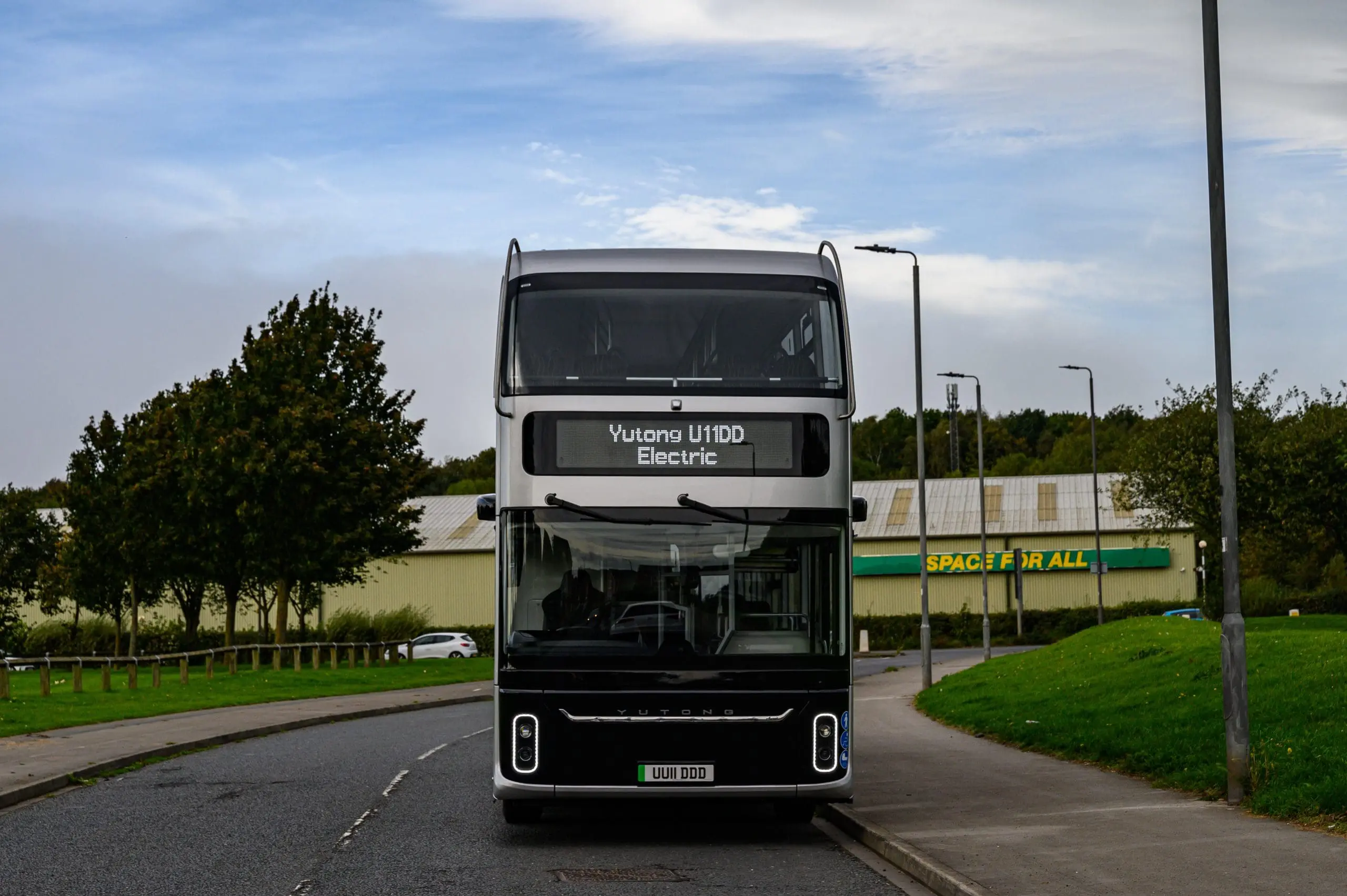

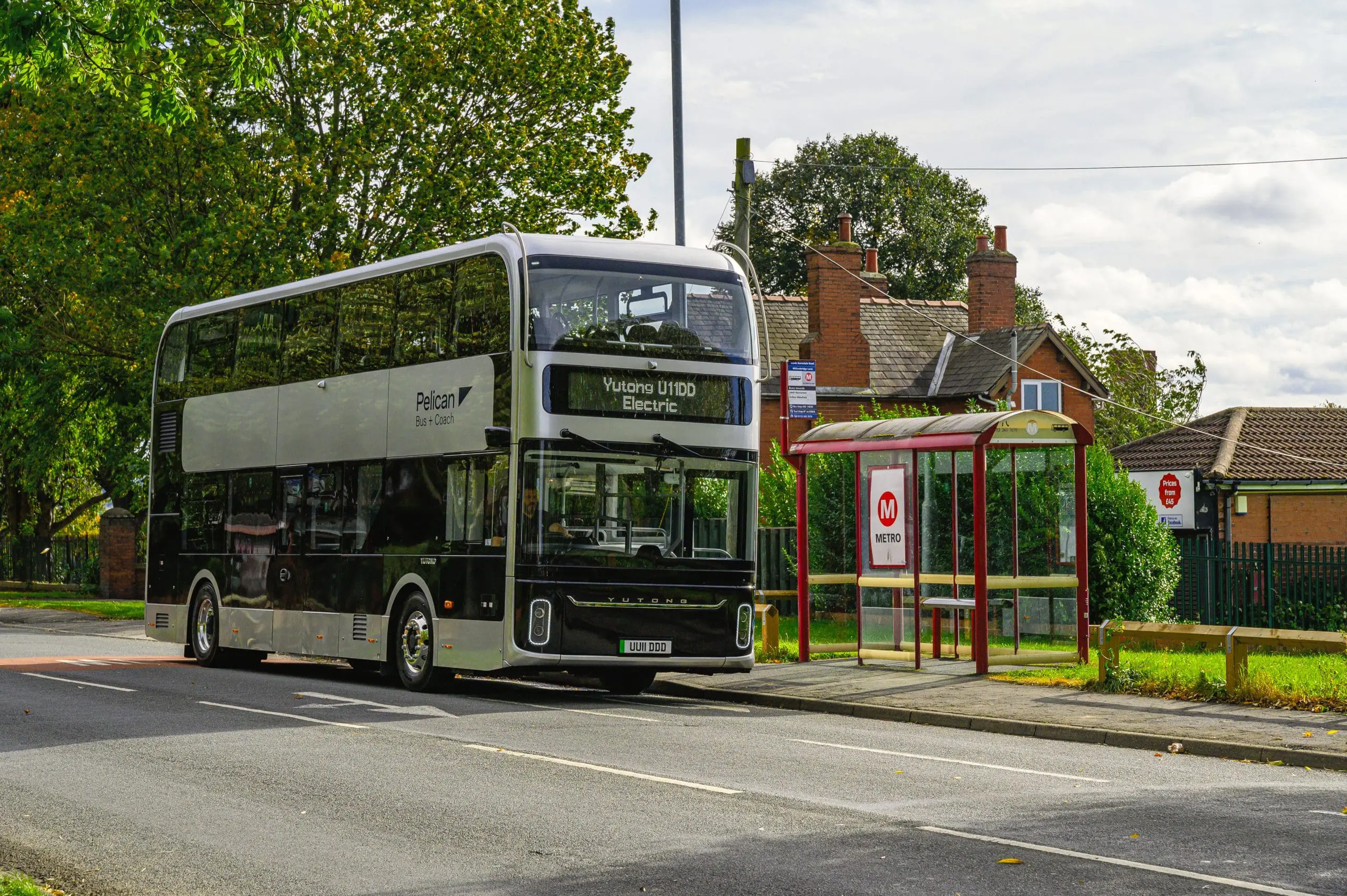

The U11DD is a zero tailpipe emission electric double deck bus which has tried, tested, and proven technology with over 40 billion kms of experience. Smooth, quiet, and a comfortable ride. Full air conditioning. Industry-leading safety systems with the safest battery chemistry. Integral designed and built with no compromise on fit or finish and excellent access to all componentry resulting in low repair and maintenance costs.

Dimensions (mm) L*W*H

Dimensions (mm) L*W*H

10,900* 2,550* 4,350

10,900* 2,550* 4,350

Unladen Weight (kg)

Unladen Weight (kg)

13,750

13,750

Max Allowed Weight (kg)

Max Allowed Weight (kg)

19,200

19,200

Max Speed (km/h)

Max Speed (km/h)

80

80

Seats

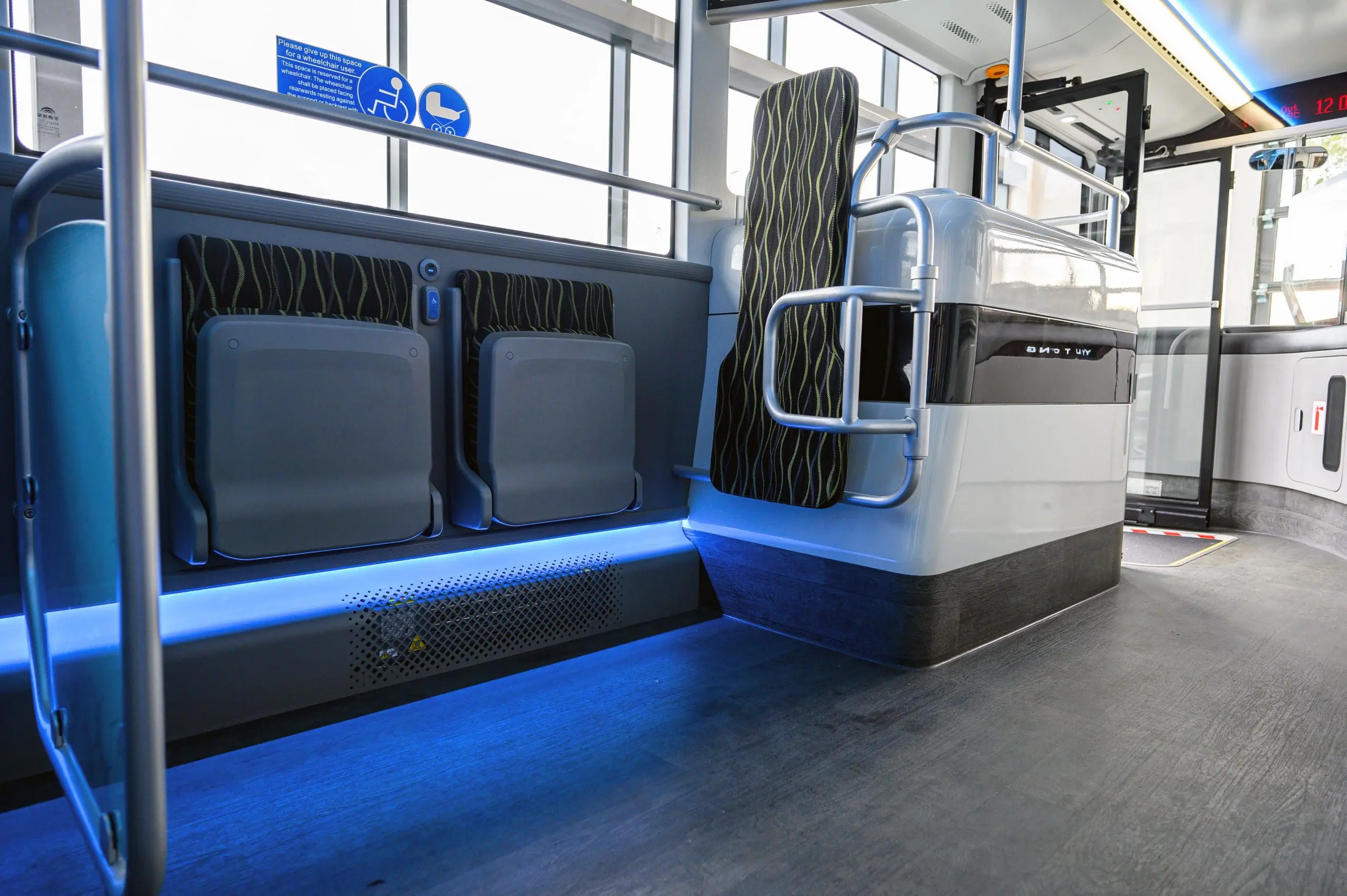

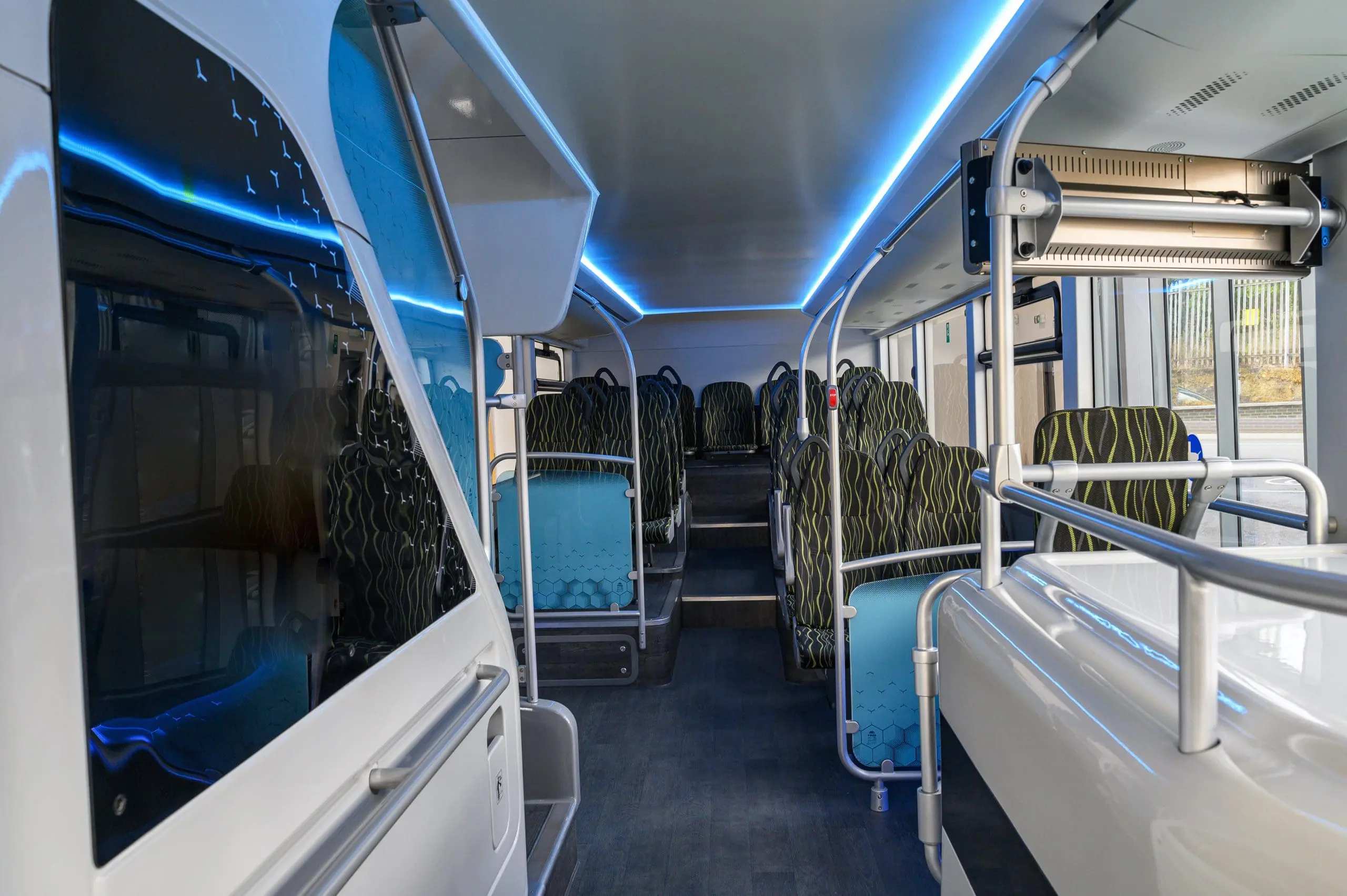

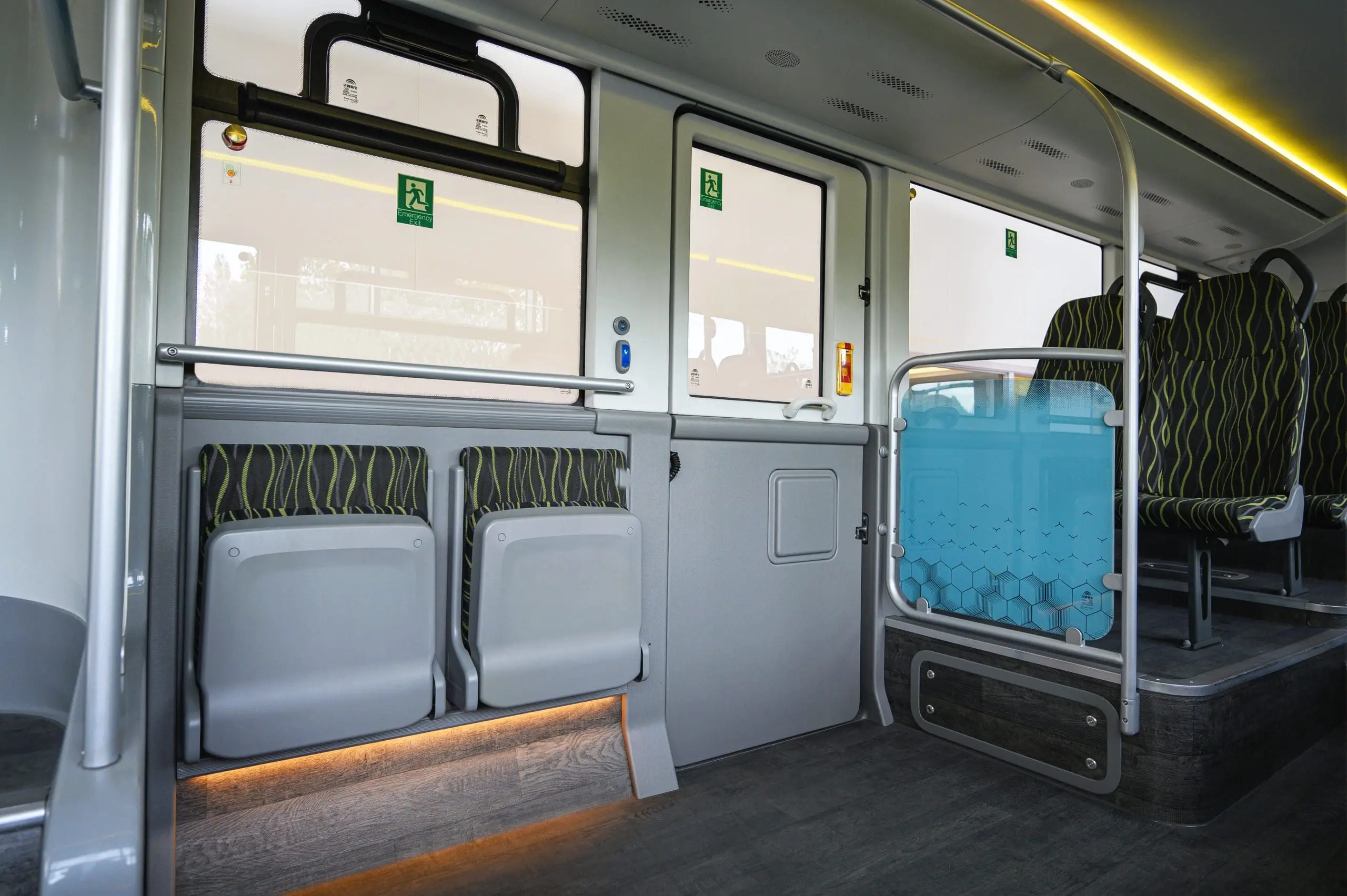

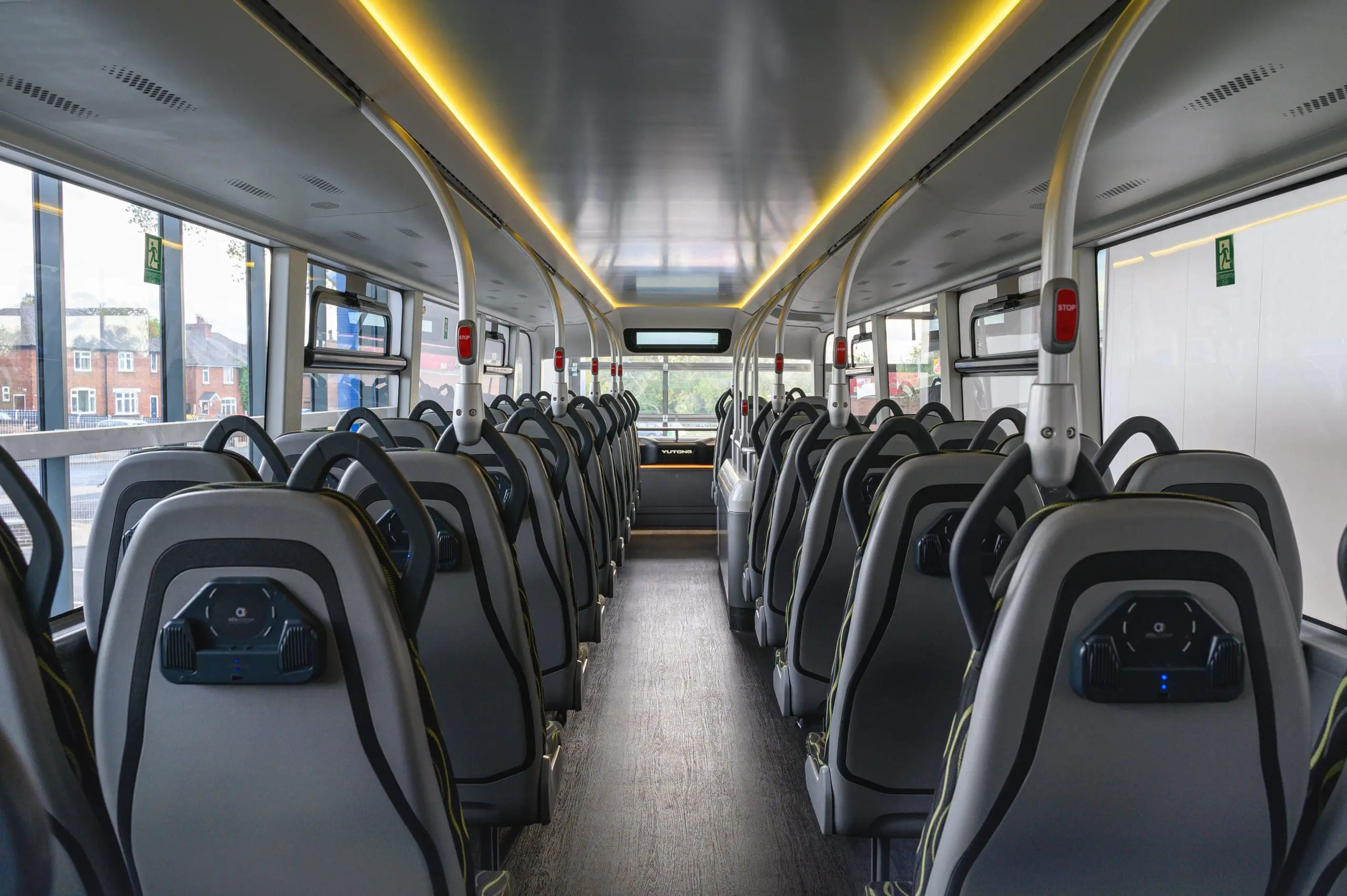

Lower deck 23 seats + 4 tip up seats, upper deck: 45 seats

Electric Motor

Single PMSM motor, rated power 220kW

Axles

Front ZF RL82EC, Rear ZF AV133, disc brakes

Tyres & Wheels

Michelin 275/70R22.5, Yutong bright aluminium wheel

Battery

Battery

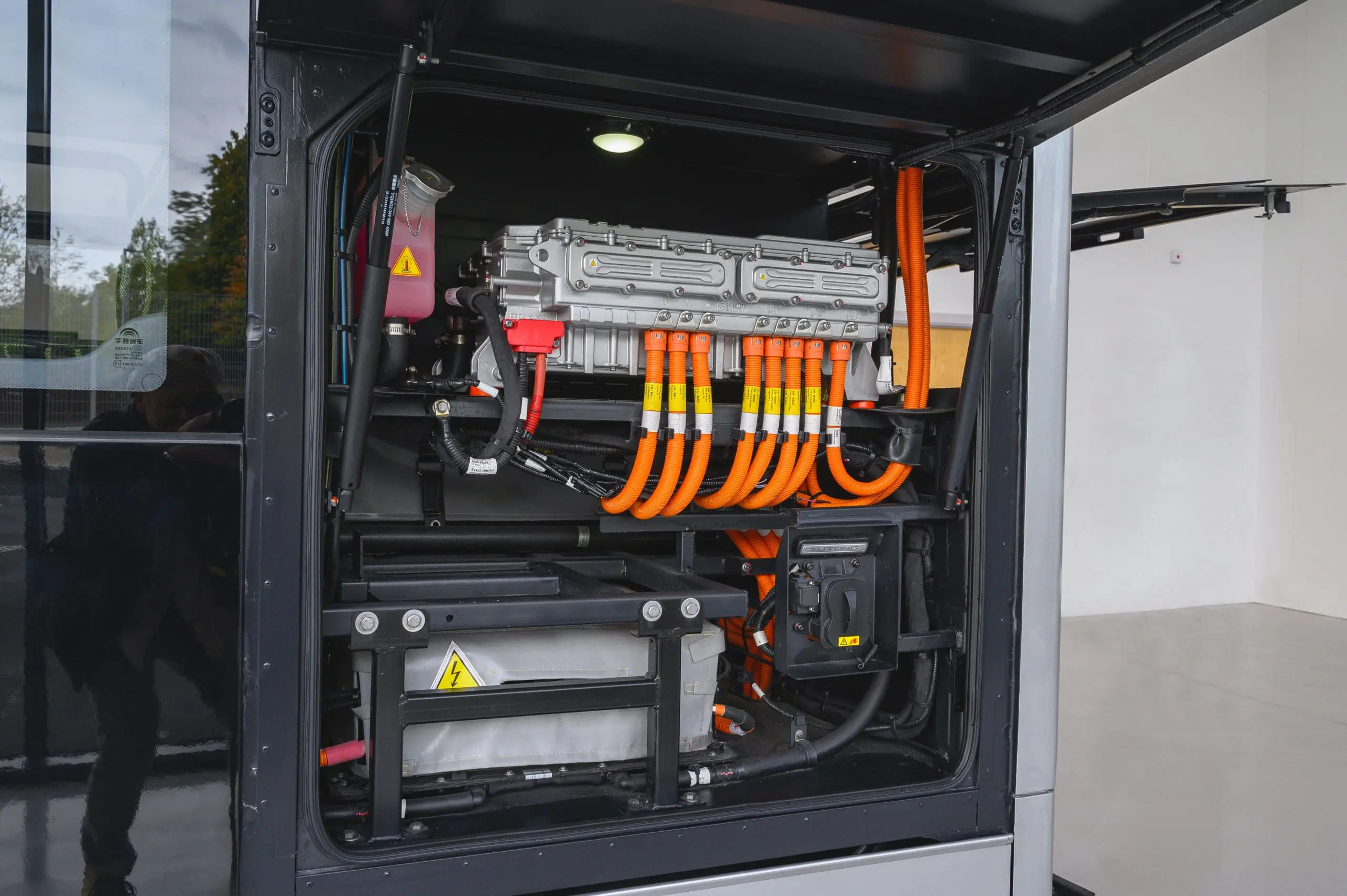

422.87kWh LFP battery, liquid cooling. Option 385kWh

422.87kWh LFP battery, liquid cooling. Option 385kWh

Battery Safety

Battery Safety

Full YESS system

Full YESS system

Charging

Charging

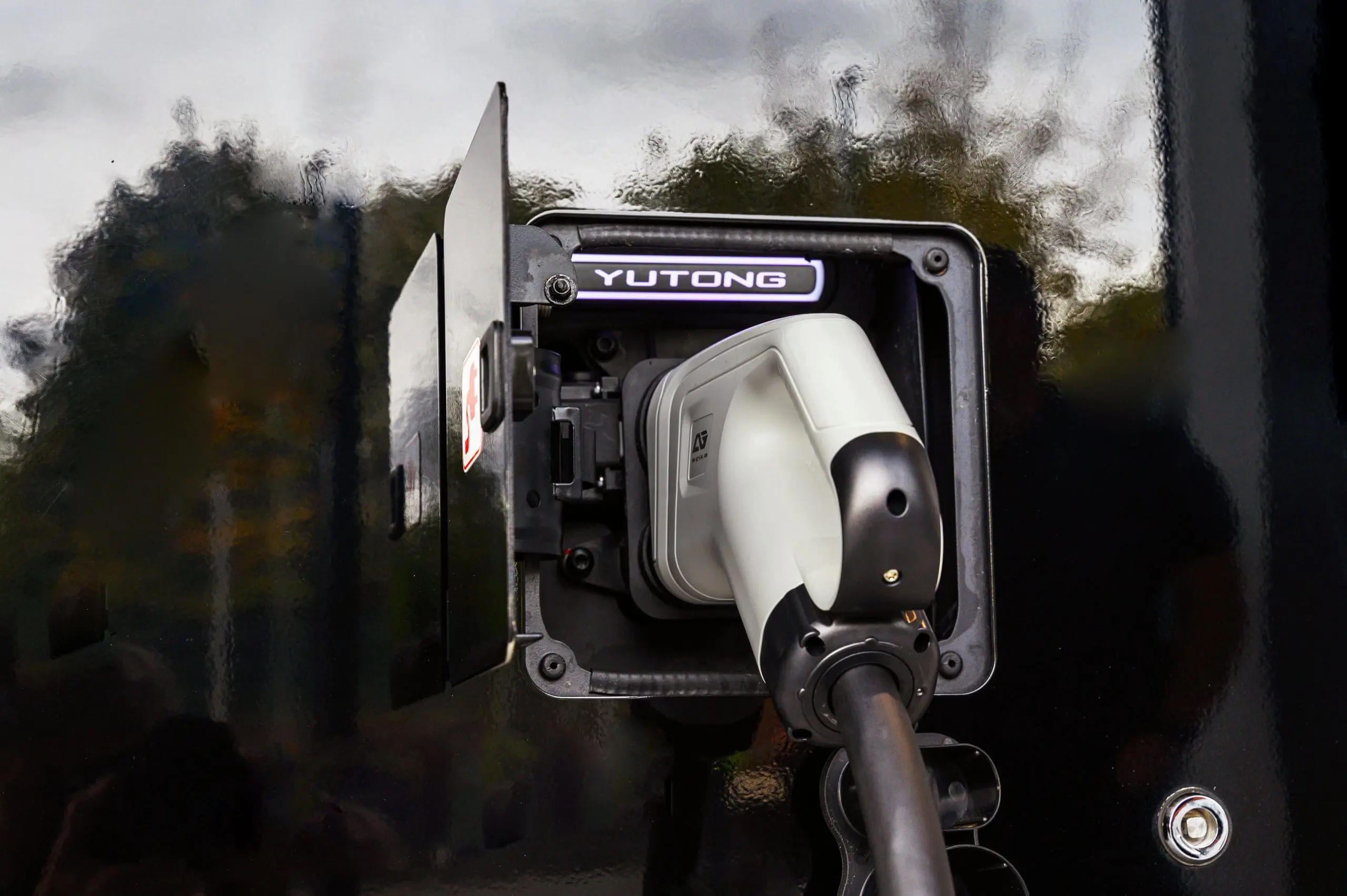

One charging point with 150KW, CCS2 charging

One charging point with 150KW, CCS2 charging

Passenger seats

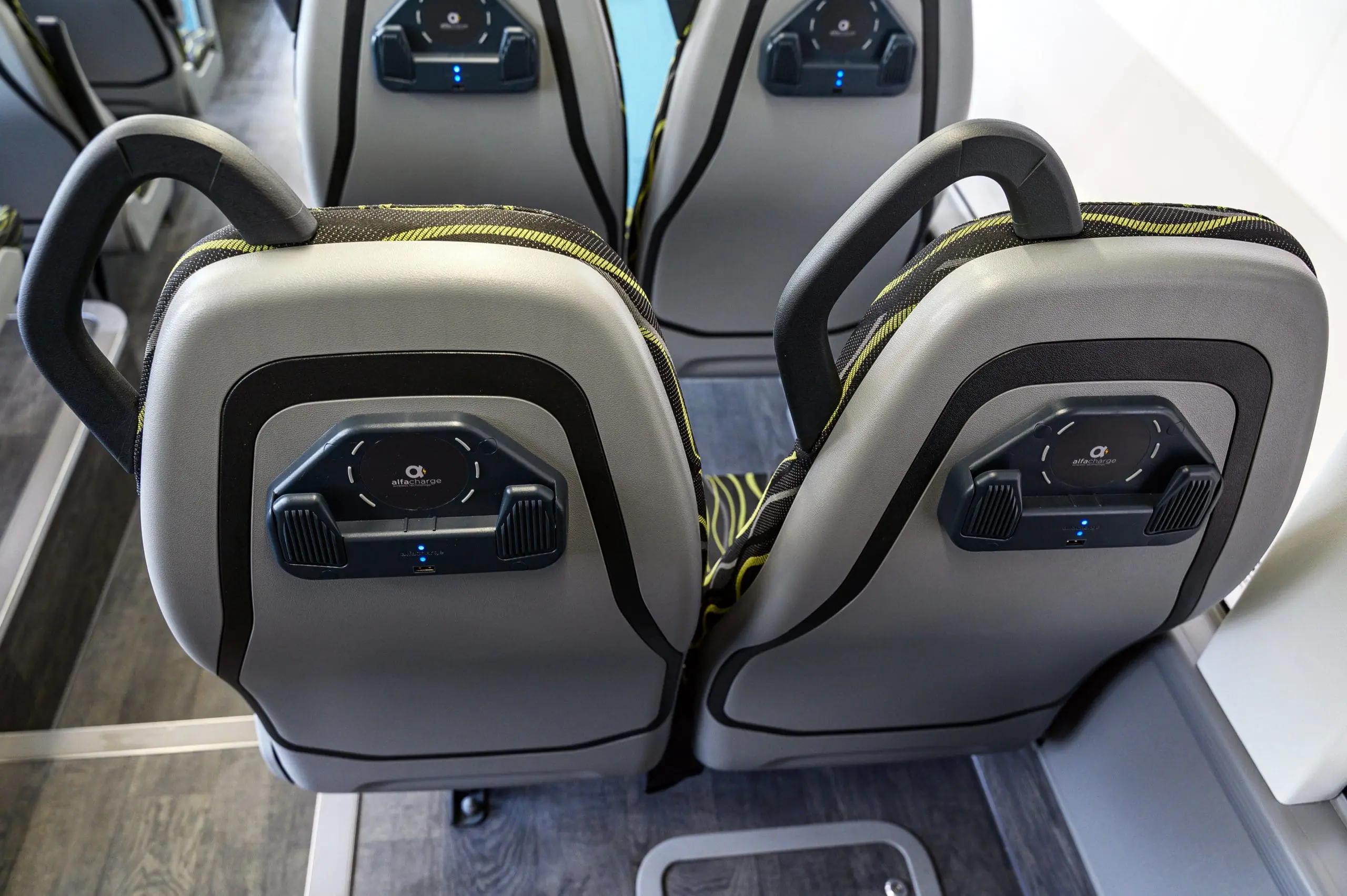

Yutong highback seat with USB

Doors

Front double leaf

Air Conditioning

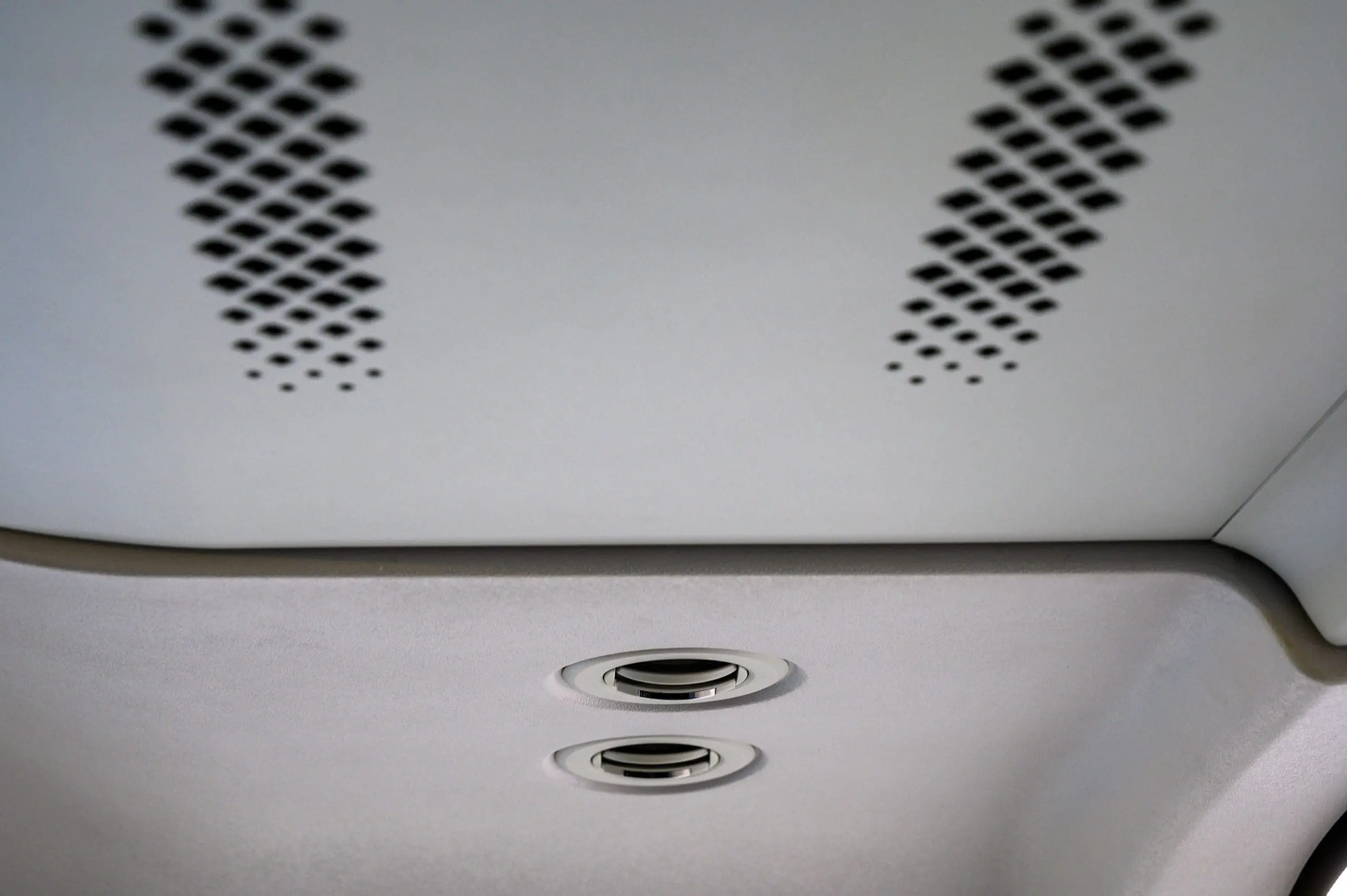

Cooling capacity 24,000Kcal/h, heating capacity 22,000Kcal/h

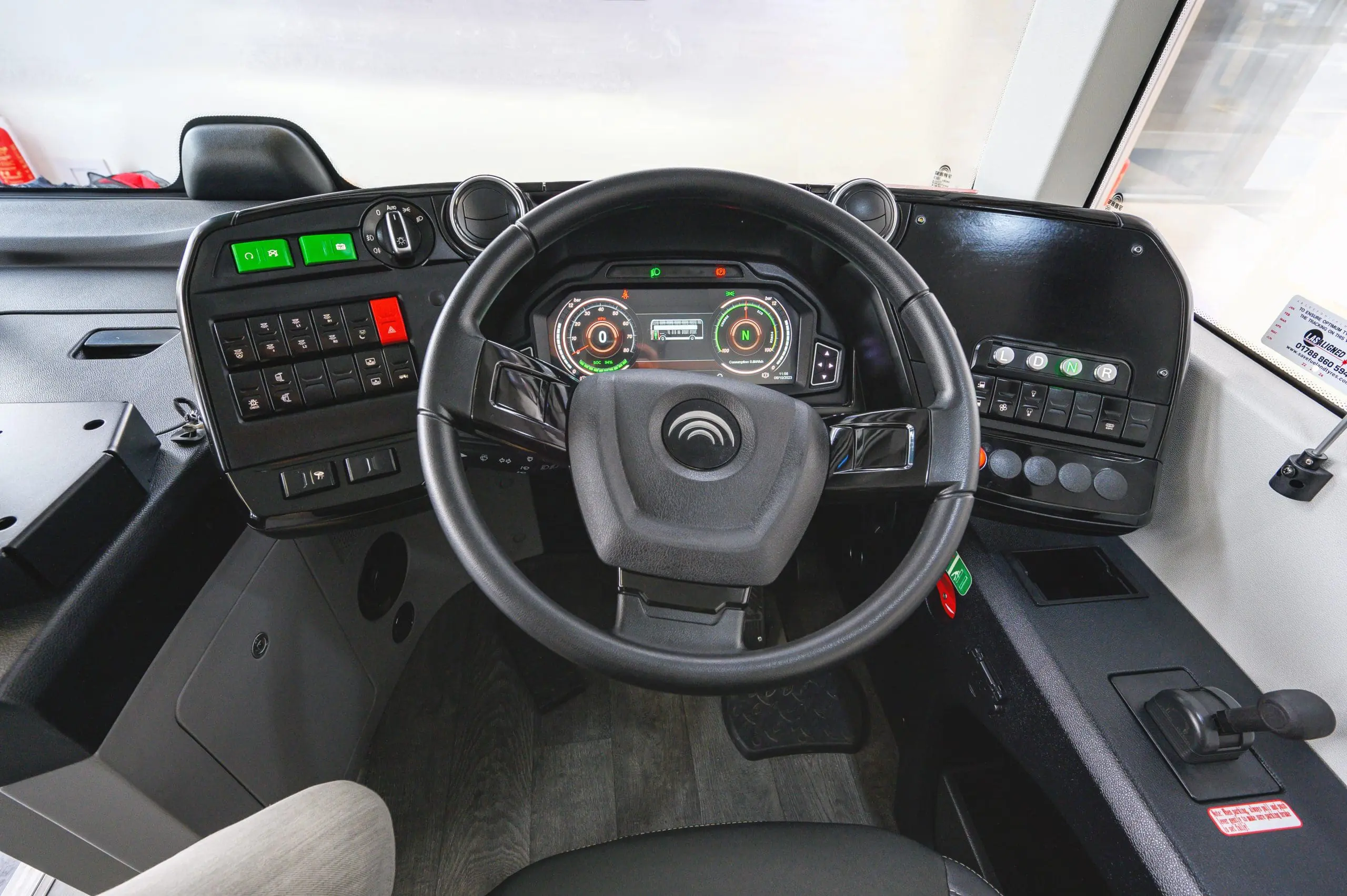

Drivers Seat

Yutong drivers seat

Bespoke Options

Passengers seats, driver seats, flooring, seating material, destination systems, passenger information systems, CCTV, charging up to 300kW per hour

Specification

Length 10.9m
Width 2.55m
Height 4.35m
Passenger Capacity 80/84
Passenger Seating 70
Unladen Weight (kg) 13,750
Max Allowed Weight (kg) 19,200
Max Speed (km/h) 80
Seats Flexible lower deck seating options
Electric Motor Single PMSM Motor, Rated Power 215kW
Axles Front ZF RL82EC, Rear ZF AV133, Disc brakes
Tyres & Wheels Michelin 275/70R22.5,Yutong Bright Aluminum Wheel
Battery 422.87kWh LFP battery, Liquid Cooling. Option 385kWh
Battery Safety Full YESS System
Charging One charging point with 150KW, CCS2 Charging
Air Conditioning Cooling capacity 24000Kcal/h, Heating capacity 22000Kcal/h)
Doors Front double leaf door
Floor Non-slip, heavy duty vinyl flooring
Drivers Seat Yutong drivers seat
Passenger Seats Yutong highback seat with USB
Bespoke Options Passengers seats, driver seats, flooring, seating material, destination systems, passenger information systems, CCTV, Charging up to 300kW per hour
Battery 422.87kWh LFP battery, Liquid Cooling. Option 385kWh
Battery Safety Full YESS System
Charging One charging point with 150KW, CCS2 Charging
Air Conditioning Cooling capacity 24000Kcal/h, Heating capacity 22000Kcal/h)
Doors Front double leaf door
Floor Non-slip, heavy duty vinyl flooring
Drivers Seat Yutong drivers seat
Passenger Seats Yutong highback seat with USB
Bespoke Options Passengers seats, driver seats, flooring, seating material, destination systems, passenger information systems, CCTV, Charging up to 300kW per hour
